Why state machines make UI logic simpler, safer, and way more maintainable.

🤯 The UI Logic Spiral

Let’s be honest: your React component’s state logic probably started simple.

A couple of booleans. Maybe a useEffect. Just enough to get things working.

But then things changed:

  • You added a loading state.

  • Then an error state.

  • Then a retry flow.

  • Then an edge case where loading and error coexist.

Now you’re juggling isLoading, hasError, isSubmitting, showModal, and a nest of if/else blocks — and you’re still not sure you’ve covered all the cases.

Sound familiar?

🧠 UIs Aren’t Just State — They’re Behavior

We often treat UI state as a flat structure of booleans or enums.

But in reality, your UI is a process. A sequence. A user clicks a button, something happens, and the UI responds.

That’s not just state. That’s state over time — and that’s exactly what state machines are made for.

✅ The Solution: Model Behavior, Not Just State

What if, instead of wiring together a dozen flags, you modeled your UI logic as a state machine?

With a state machine, you:

  • Define all possible states up front

  • Describe only valid transitions

  • Eliminate contradictory or impossible states

  • Get a visual map of your logic — for free

Let’s look at a simple example.

🧪 Example: Toggle with XState

import { createMachine } from 'xstate';

const toggleMachine = createMachine({
  id: 'toggle',
  initial: 'inactive',
  states: {
    inactive: {
      on: { TOGGLE: 'active' },
    },
    active: {
      on: { TOGGLE: 'inactive' },
    },
  },
});

That’s it.

One machine. Two states. One event. No booleans. No conditionals. No useState.

Simple, expressive, and type-safe.

🔍 Visualizing It

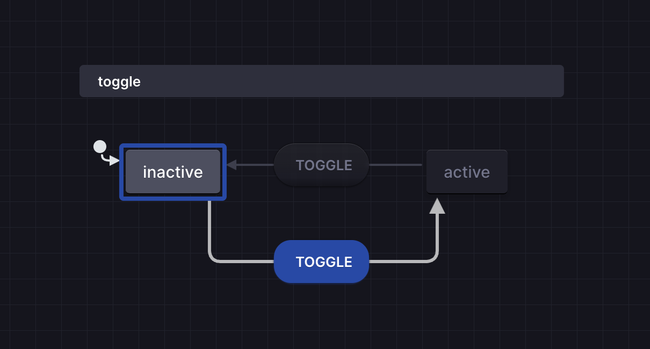

Here’s what that machine actually looks like:

State machine visualizer from stately.aiState machine visualizer from stately.ai
Button

Tools like Stately.ai let you see your machines as flow diagrams — so you and your team instantly understand what’s going on.

🛠️ Why This Matters

This isn’t just for toggles. You can use state machines to:

  • Simplify multi-step forms and wizards

  • Model modals, dropdowns, or onboarding flows

  • Eliminate inconsistent UI states

  • Replace messy useEffect logic with declarative transitions

And when you pair XState + React + TypeScript, you unlock type-safe, testable UI logic that scales.

⏭️ Coming Up Next: States, Events, and Transitions

In the next issue, we’ll break down the three building blocks of any state machine — and how to spot them in your own components.

You’ll learn how to go from messy state to modeled behavior in minutes.

💡 Try This

Pick a small UI interaction in your app — a toggle, modal, or dropdown — and try modeling it as a state machine.

Just one.

Then ask yourself: was this easier to reason about?

Hit reply and let me know how it went — or tag me on Twitter/X. I’ll feature a few community examples in future issues.

Thanks for reading, Horacio
